MAGNON RL-1000-01 m1200

4660 lm, 30 W, PMMA Transopal® (impact strengthened), medium beam
  • led
  • IP65
  • IP66
  • IP67
  • IP68_20m
  • IP69K
  • ce
  • enec
  • vde
  • protection_class_II
  • brandschutz_d
  • IK09_PMMA
Product Image
medium beam

Tubular luminaire with LED lamps. Can be used in industrial applications, in work pits used for maintenance and repair work and for decorative indoor and outdoor lighting. Polymer luminaire tube (Ø 75 mm) with two quick-mounting pressure caps and protection against unauthorised opening. Resistant to pressurised water up to 20 m compliant with IP68 rating, 20 m. Useable for indoor and outdoor areas according to IP65 and IP66. Suitable for intensive cleaning processes using pressure washers due to high protection rating IP69K. Luminaire tube made of PMMA Transopal® (impact strengthened), homogeneous illumination. Luminaire ready for mounting and installation. Built-in driver 230 V AC/DC. Ceiling or wall fixing using two mounting clamps made of stainless steel/black polymer with variable mounting distance, including protections against unauthorised opening.null

Version
m1200
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
4660 lm
LOR
96.3 %
Luminous flux luminaire
4488 lm
max. System power
30 W
Luminaire efficacy
149.6 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Colour consistency (McAdam ellipse)
SDCM3
Lamp service life
L80 / B10 > 50,000 h at +30°C
Ambient temperature
-25°C to +30°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC
EL (Emergency Lighting)
false
Max. number of luminaires Circuit breaker B16
22
Max. Number of luminaires Circuit breaker C16
37
Through-wiring
3 x 1.5 mm²
Housing material
polymer
Colour housing
Other
Material of the cover
PMMA Transopal® (impact strengthened)
Light distribution
medium beam
Adjustability
Swivelling
UGR Value (4H8H)*
24.5
Protection class
II
IP-rating
IP65, IP66, IP67, IP68 20m, IP69K
Impact strength
IK09
ENEC
Yes
VDE
Yes
Manufacturer warranty
5 years
Resistance
Impact resistant, dustproof, jet water protected, water proof
Installation type
Surface mounting, ceiling mounting, wall mounting, single mounting, row mounting
Replaceability of control gear
control gear replaceable by professional
Replaceability of light unit
LED tray replaceable by professional
Energy efficiency class of the light source
D
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
1412 mm ± 2 mm
Width
89 mm
Height
99 mm
Mounting dimension a
1310 mm ± 25 mm
Max. weight
4,0 kg

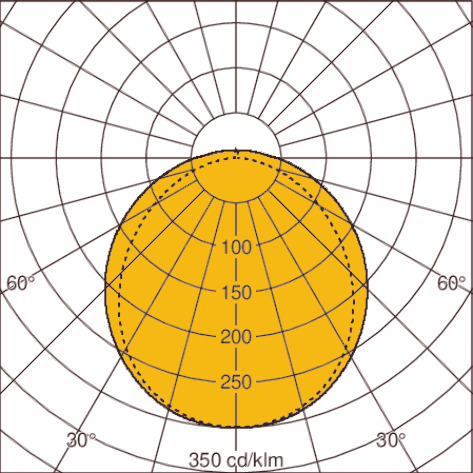

Light distribution curveLOR: 96 %
