3211004481

MAGNON AL-1100-01 With shutter

1000 lm, 9 W, lamp cover, PC (fracture proof) opal white, wide beam
  • led
  • IP65
  • ce
  • protection_class_II
  • brandschutz_d
  • IK10_PC

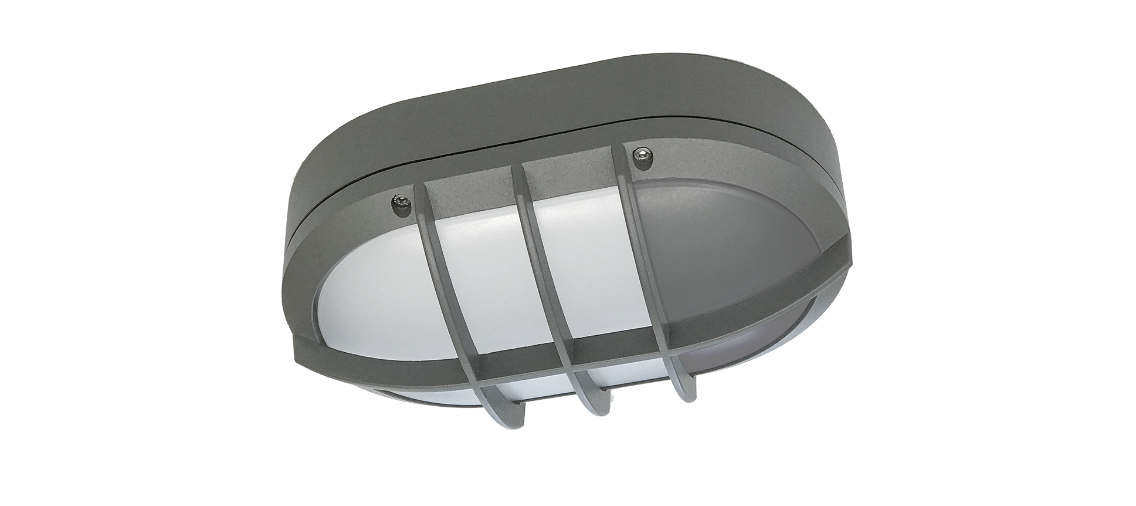

Product Image
wide beam

Impact-resistant ceiling- and wall mounted luminaire with LED lamps. Vandalism-proof up to 20 Joule. Useable in all areas at risk of deliberate or negligent destructions. Luminaire housing made of cast aluminium, RAL 9007. Protection rating IP65, protection classII. LED light color temperature neutral white. Lamp cover made of UV resistant PC (fracture-proof) opal white. Luminaire ready for mounting and installation. Built-in driver 220-240 V AC/DC. Single mounting. Ceiling or wall surface mounting. Permanent ambient temperature -30 °C to +35 °C. L80B10 > 50,000 h.null

Version
With shutter
Lamp
LED
Number of lamps
1-lamp
Luminous flux lamp
1000 lm
LOR
48.1 %
Luminous flux luminaire
480 lm
max. System power
9 W
Luminaire efficacy
53 lm/W
Colour temperature
White, 840/4000 K, Ra > 80
Lamp service life
L80 / B10 > 50,000 h at +30°C
Ambient temperature
-30°C to +30°C
Type of gear
LED operating device current-controlled,
No dim function, 230 V - 240 V AC/DC, 0/ 50/ 60 Hz
EL (Emergency Lighting)
false
Through-wiring
without
Housing material
aluminium
Colour housing
Grey similar to RAL 9007
Cover
lamp cover
Material of the cover
PC (fracture proof) opal white
Light distribution
wide beam
Adjustability
not adjustable
UGR Value (4H8H)*
20.2
Protection class
II
IP-rating
IP65
Impact strength
IK10
Manufacturer warranty
5 years
Resistance
Impact resistant, water proof
Installation type
Surface mounting, ceiling mounting, wall mounting, single mounting
* The above mentioned UGR is based on example calculations. The effective value can only be determined with a light calculation.
Dimensional Drawing
Length
278 mm
Width
182 mm
Height
99 mm
Mounting dimension a
258 mm
Max. weight
1,7 kg

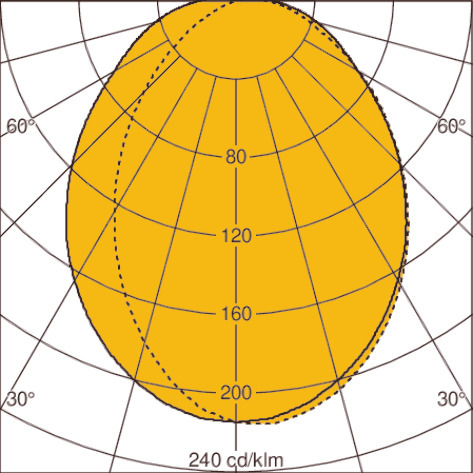

Light distribution curveLOR: 48 %
